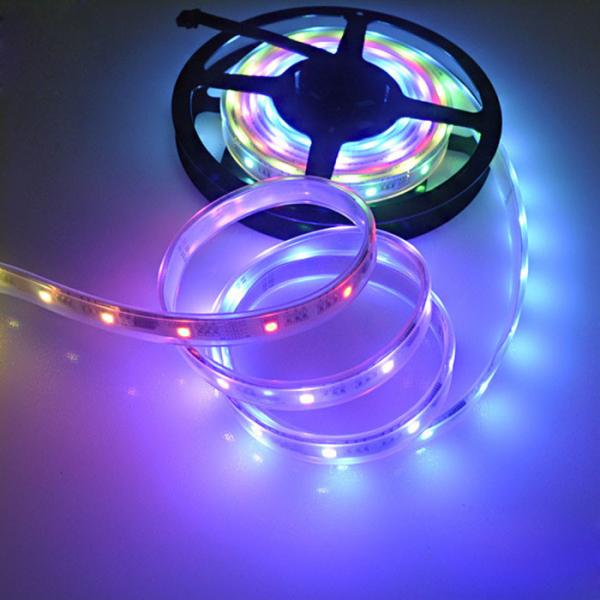

TM1809 Addressable IC Solution flexible led pixel Strip Lights
TM1809 Addressable IC Solution led strip lights
DC5V 30 LED TM1809 Addressable led strip
Specifications:
1) Voltage: DC 5 Volt
2) IC type: TM1809
3) IC quantity: 10pcs/meter, one IC drive 3 led chips.
4) LED type: SMD5050 RGB
5) LED quantity: 30pcs/meter
5) Pixel: 30 Pixels / meter, 3 led chips in one Pixel
7) Max power: 9Watts/meter
8) Bit: 8 bit
9) Greyscale: 256 level.
10) Package: 5meters/reel/anti-static bag
11) Waterproof IP67.
Connection:
1) Signal wire: DC+, DIN, GND
2) DC+ and GND connect to power supplier; DIN and GND connect to
controller
3) Relative controller: SPI controller support TM1809; when use DMX
decorder, can connect to DMX system
4) Support online control
Color:
1) Each Pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and
video
Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run
over the peak value
3) Keep the surface of installation clean and smooth avoid breaking
off
4) Avoiding the crook area just the position of LED and other
components, in order to protect the product and extend the life
span of the product.
|
|
