DMX512 to SPI Decoder connect diagram

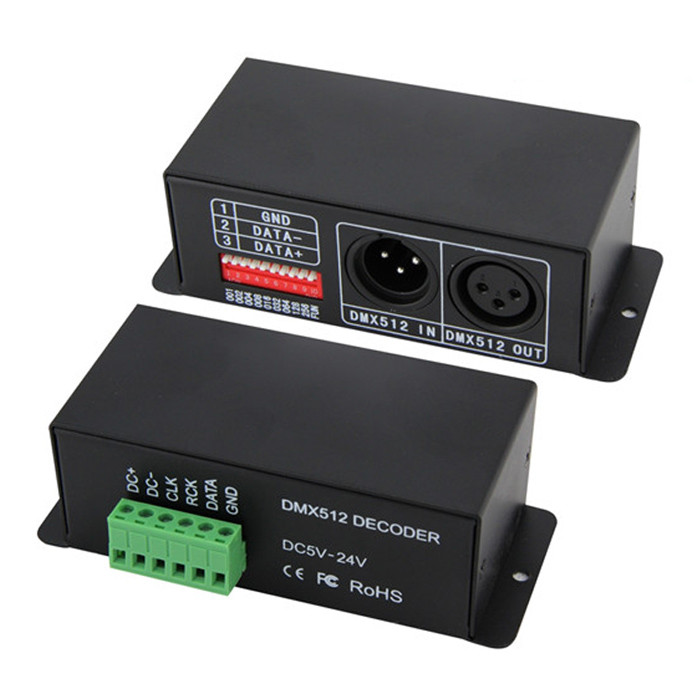

DMX512 to WS2801/WS2811 SPI Decoder

DMX512 to WS2811 Decoder

Specifications:
1. CE, FCC, RoHS listed.
2. Factory price.
3. Three years warranty.
4. Fast delivery.
5. OEM/ODM orders are welcomed.

The DMX512 Data Decoder adopted the advanced decoding technology to convert the international standard DMX512/1990 signal into standard SPI (TTL) / LPD6803 / LPD8806 / TM1809/P9813/ TLS3001/WS2801 signals, each decoder has 96/510 DMX output channels, and the output channels can be expanded by adding decoders, therefore, most of LED lights can be controlled by DMX512/1990 protocol via the signal conversion, then widely used pixel light, digital tube light, floodlight, Pixel screen, dancing floor light etc.

Feature function

1.In put standard DMX512 protocol,Address can be set by DIP.
2.Automatically adapt input voltage DC5V-24V.
3.Self-Changing Mode exist.
4.Output TTL Signal.
5. Power loss memory function.
